Evolv DNA 40 w/Large Screen

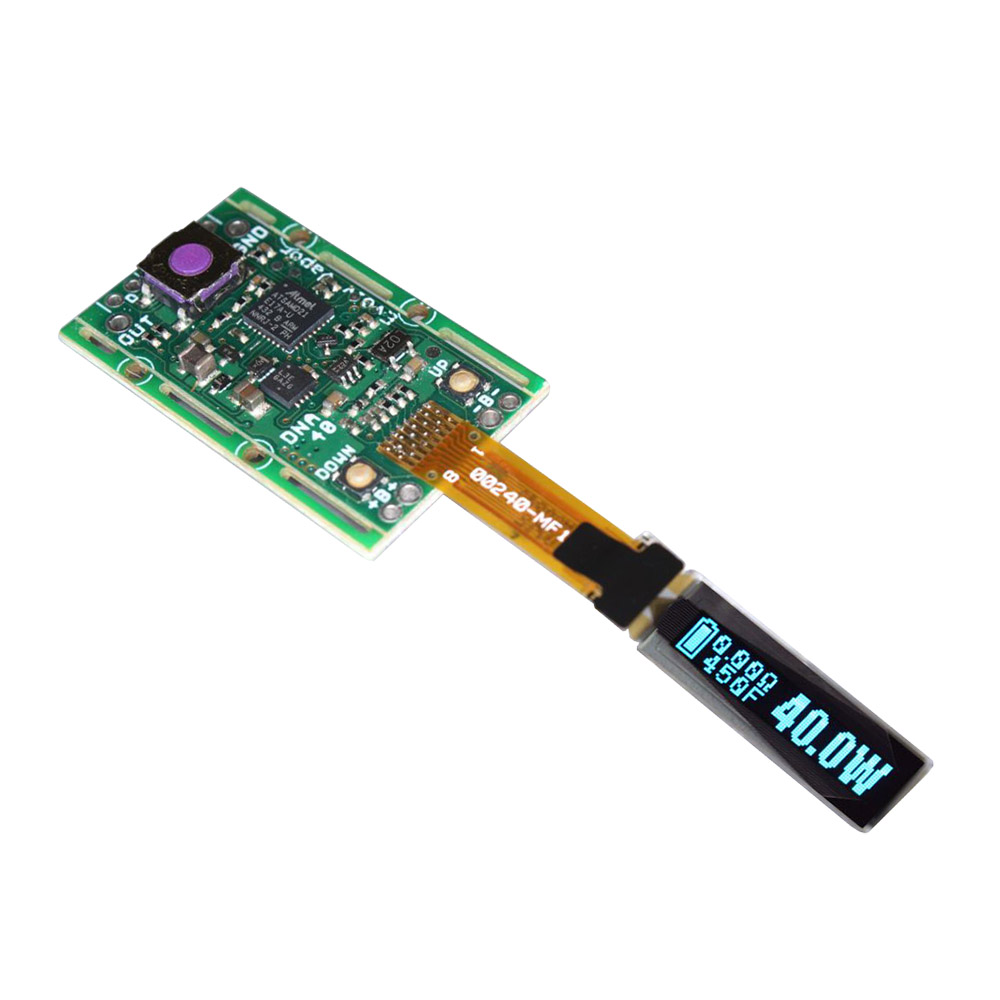

The DNA 40 is a 40W power regulated digital switch-mode DC-DC converter for personal vaporizers. It features Evolv’s patented Wattage Control, Temperature Protection, Preheat, Step Up/Step Down Topology, Digital User Controls, OLED Screen, Onboard Buttons and Synchronous Rectification for maximum battery life and minimal heat generation.
The DNA 40’s dimensions make it an ideal choice for incorporation into smaller devices.
Please see below for further information and specifications.
The DNA 40 by Evolv
Features:
- Wattage Output Range: 1-40W
- Voltage Output Range: 1-9V
- 92% Output Efficiency
- Temperature Range: 200-600°F / 93 – 315°C
- Temperature Control supports Ni200 Nickel
- 128×32 OLED screen
- Coil Preheat
- Low Resistance Protection
- Short Circuit Protection
- Overheat Protection
- Low Voltage Protection
- Optional MicroUSB Board.
Evolv DNA 40 Datasheet can be found here.
For further discussion, profiles, themes and more, visit the Evolv DNA Forum.
| Weight | 1 oz |
|---|---|
| Dimensions | 3.25 × 2.25 × 1 in |
